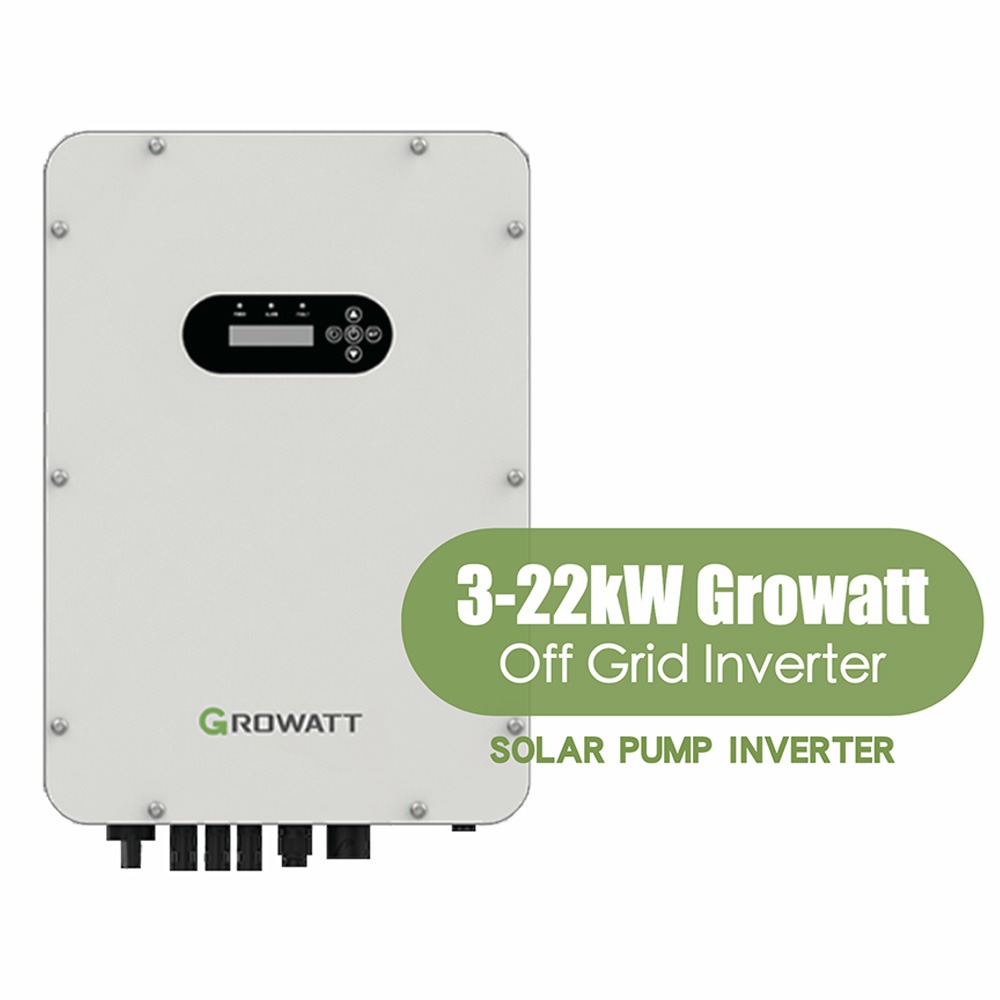

Growatt Off Grid Solar Pump Inverter 3kW 5kW 7kW 11kW 15kW 22kW

Off grid solar pump inverter, off grid storage inverter
SPI 3000, SPI 4000, SPI 5500, SPI 7500, SPI 9200, SPI 11000, SPI 13000, SPI 15000, SPI 18500, SPI 22000
Power: 3kW 4kW 5.5kW 7.5kW 9.2kW 11kW 13kW 15kw 18.5kW 22kW
Warranty: 5 year
Brand: Growatt



The Working Principle of Off Grid Solar Pump Inverters

Off-grid solar pump inverter are specialized devices designed to harness the power of solar energy to drive water pumps in remote areas where grid electricity is unavailable or unreliable. These inverters have a unique working principle tailored to the specific needs of water pumping applications. In this article, we will explore the working principle of off-grid solar pump inverters and how they operate in conjunction with solar panels and water pumps.

1. Solar Panel Power Generation:

The process begins with solar panels, which are typically installed in an open area with access to sunlight. Solar panels consist of photovoltaic cells that convert sunlight into direct current (DC) electricity. These panels are connected in an array to generate the required amount of electricity to power the water pump.

2. DC Electricity Input:

The DC electricity generated by the solar panels is then fed into the off grid solar pump inverter. This inverter serves as the bridge between the solar panels and the water pump, converting the DC power into the alternating current (AC) required to operate the pump. It is important to note that the solar pump inverter is specifically designed for this purpose and optimized for variable speed control.

3. Maximum Power Point Tracking (MPPT):

One of the key features of off grid solar pump inverter is their ability to perform Maximum Power Point Tracking (MPPT). MPPT is a critical function that ensures the solar pump system operates at its peak efficiency. It continuously adjusts the operating voltage and current to ensure that the inverter operates at the point on the solar panel’s voltage-current curve where it can extract the maximum power. This optimization ensures that the water pump runs efficiently, even under varying solar conditions.

4. Inverter Control Algorithms:

The off-grid solar pump inverter is equipped with specialized control algorithms that regulate the speed and output of the water pump. These algorithms take into account factors such as the available solar energy, the water demand, and the pump’s performance characteristics. By adjusting the pump’s speed, the inverter can match the water supply to the varying solar power output, ensuring efficient operation.

5. Water Pump Operation:

The AC output from the off grid solar pump inverter powers the water pump. Depending on the water demand and the control algorithms, the inverter adjusts the pump’s speed and flow rate to meet the required water supply. This precise control ensures that water is pumped as needed while minimizing energy wastage.

6. Dry-Run Protection and Safety:

Off-grid solar pump inverters often include safety features such as dry-run protection. This feature detects when the water source is depleted or if there is insufficient water for pumping. In such cases, the inverter can shut down the pump to prevent damage, extending the pump’s lifespan.

7. Monitoring and Remote Control:

Many off grid solar pump inverter are equipped with monitoring systems that collect real-time data on energy production, water flow, system health, and more. Users can access this data remotely to monitor the system’s performance and make adjustments as needed, even in remote locations.

In summary, the working principle of off grid solar pump inverters revolves around efficiently converting solar energy into electricity to drive water pumps. Through MPPT, control algorithms, and safety features, these inverters ensure the reliable and efficient operation of water pumps in remote areas, where access to grid electricity is limited or nonexistent. By harnessing the power of the sun, off-grid solar pump systems contribute to sustainable water supply solutions and have a positive impact on rural and off-grid communities.
