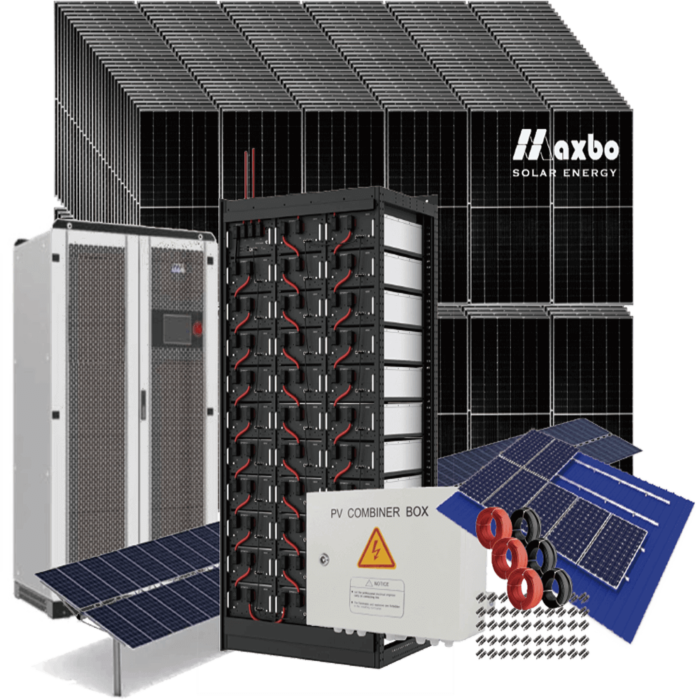

100kW hybrid solar system
Supporting configuration list
100kW hybrid inverter * 1
530W Solar Panel * 180
480V200Ah Li Battery * 1
6 input, 1 output control box * 2
1000m photovoltaic line * 1 set
MC4 connector * 100
Mounting bracket (Roof/Ground)
Driven electrical appliances
within 100kW (resistive load)
within 33.3kW (inductive load)
About 473.4 square meters
A 100kW hybrid solar system is a significant renewable energy solution that combines solar panels, energy storage, and often backup sources to generate electricity. It harnesses sunlight through solar panels, converts it into usable power, stores excess energy, and can provide a continuous power supply, making it a versatile and sustainable energy solution for various applications.
A Comprehensive Overview of a 100kW Hybrid Solar System
A 100kW hybrid solar system represents a powerful and versatile renewable energy solution that integrates solar panels, energy storage, and often backup sources. Let’s delve into various aspects of this system:
1. Solar Panel Configuration:
- A 100kW hybrid solar system typically consists of approximately 300-350 high-efficiency solar panels, installed on rooftops, ground mounts, or solar arrays. These panels are strategically positioned to capture maximum sunlight throughout the day.
2. Energy Generation:
- Solar panels absorb sunlight, and photovoltaic cells within them convert solar energy into direct current (DC) electricity. The cumulative power output from the panels forms the system’s total energy generation capacity of 100kW.
3. Inverter Technology:
- Inverters, such as string inverters or microinverters, are used to convert the DC electricity generated by the solar panels into usable alternating current (AC) electricity. The choice of inverter technology depends on factors like shading and panel layout.
4. Energy Storage:
- A key feature of the system is energy storage, typically comprising advanced lithium-ion batteries. These batteries store excess solar energy for later use during periods of low sunlight or grid outages.
5. Backup Power (Optional):
- In scenarios where grid stability is a concern or as a backup power source, a backup generator with an appropriate capacity (e.g., 50-75kW) and automatic transfer switches may be integrated into the system.
6. Energy Management:
- A sophisticated energy management system optimizes energy usage, ensuring that generated electricity is used efficiently, and excess power is stored or exported to the grid if applicable.
7. Grid Connection:
- In grid-connected systems, the hybrid solar system is connected to the electrical grid. It can export surplus energy to the grid when generation exceeds demand and draw power from the grid when solar production is insufficient.
8. Off-Grid Capabilities:
- For off-grid or remote applications, a 100kW hybrid solar system can operate independently, providing a reliable source of electricity without reliance on the grid.
9. Environmental Impact:
- Solar power generation significantly reduces carbon emissions and environmental impact compared to conventional fossil fuel-based energy sources, contributing to a cleaner and more sustainable future.
10. Economic Benefits:
- Over time, the system offers economic advantages by reducing electricity costs and potentially providing a return on investment. Many regions also offer incentives and tax credits for renewable energy installations.
11. Energy Independence:
- By generating their electricity, users become less reliant on grid power, providing energy security and protection against rising electricity prices.
12. Remote Monitoring and Control:
- A remote monitoring and control system tracks the system’s performance, energy production, and battery status. Users can access this information through user-friendly interfaces or mobile apps, enabling real-time system management.
- Regular maintenance, including panel cleaning, battery checks, and inverter inspections, is essential to ensure the system operates efficiently and has a long lifespan.
- The 100kW capacity provides scalability options for users who may want to expand their solar system’s capacity in the future to meet increasing energy needs.
15. Versatility of Applications:
- A 100kW hybrid solar system has diverse applications, from powering commercial buildings and industrial facilities to providing energy in remote or off-grid areas.
16. Grid Stability Contribution:
- Grid-connected systems can contribute to grid stability by injecting excess energy into the grid during peak generation times, which can be particularly useful for regions with variable energy demands.
17. Environmental Stewardship:
- Choosing a 100kW hybrid solar system demonstrates a commitment to environmental stewardship and sustainability, aligning with global efforts to combat climate change.
In conclusion, a 100kW hybrid solar system is a robust and sustainable energy solution that combines various elements to provide reliable electricity. It offers numerous advantages, including energy cost savings, environmental benefits, and energy independence. Proper design, installation, and maintenance are crucial to realizing its full potential and contributing to a greener and more sustainable energy future.
