Power output

13kWh

Drivable loads

within 5kW

Stored energy

5kWh

Install area

Approx. 17 m²

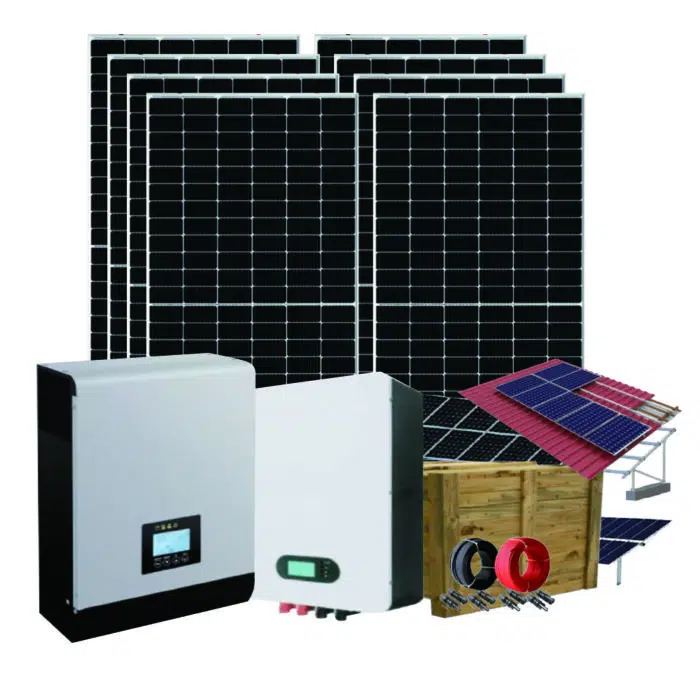

Picture	Description	Qty
	Solar Panel – 550W Size: 2279x1134x35mm Weight: 28kg 12 years product warranty 25 years linear power warranty	6

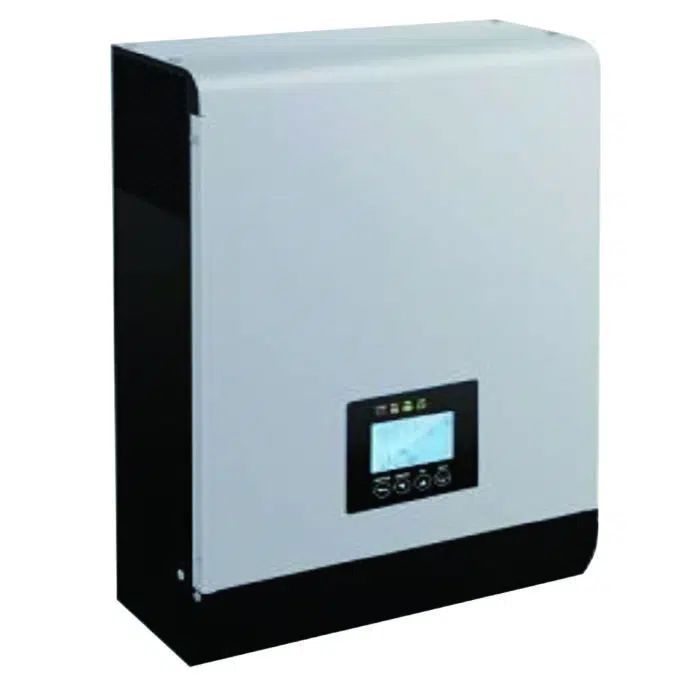

	Inverter – 5kW Rated Power: 5kW/6KVA Output Voltage: 110/220VAC Split phase, 50/60Hz Battery voltage: 48V MPPT Voltage Range: 60-150VDC No. of MPPT Trackers: 1/1 Size: 625360295mm, 45kg	1
	Li Battery 48V 100AH, A-grade cells Cycle life: 5000-6000 times at DOD 80% Size: 410630156mm Warranty: 6 year	2
	Bracket Rooftop Mounting system Enough bracket for 6pcs panels (free design display)	1

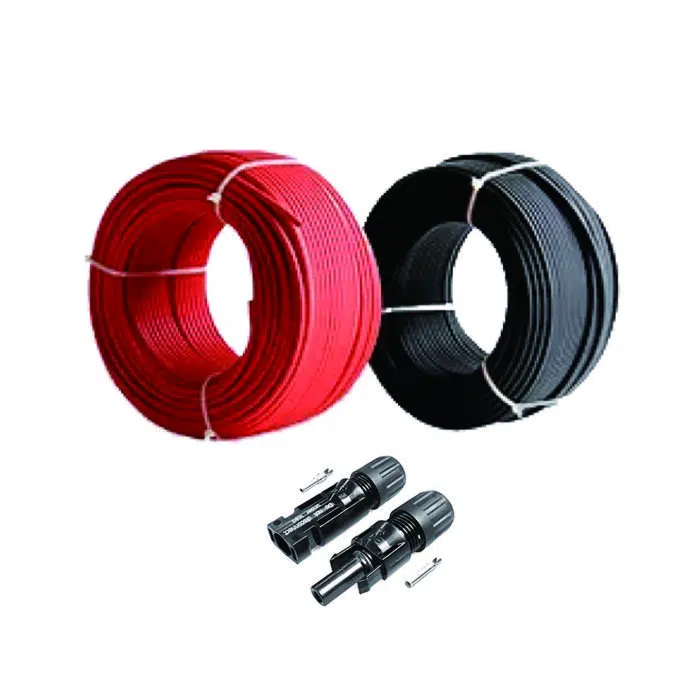

	Cable & Connecter 1roll (100m/roll, 4mm2) MC4 plug * 5pcs	1
	Panels Wooden Package Custom made	1
