500kW Hybrid Solar System
FOB China Price: US$319,999.00～US$339,999.00
Fully Customizable to Fit Your Requirements！
| Power output | 2710kWh |
|---|---|
| Drivable loads | within 500kW |
| Stored energy | 2MWh |
| Install area | Approx. 2800 m² |
500kW Hybrid Solar System (2MWh)
Description

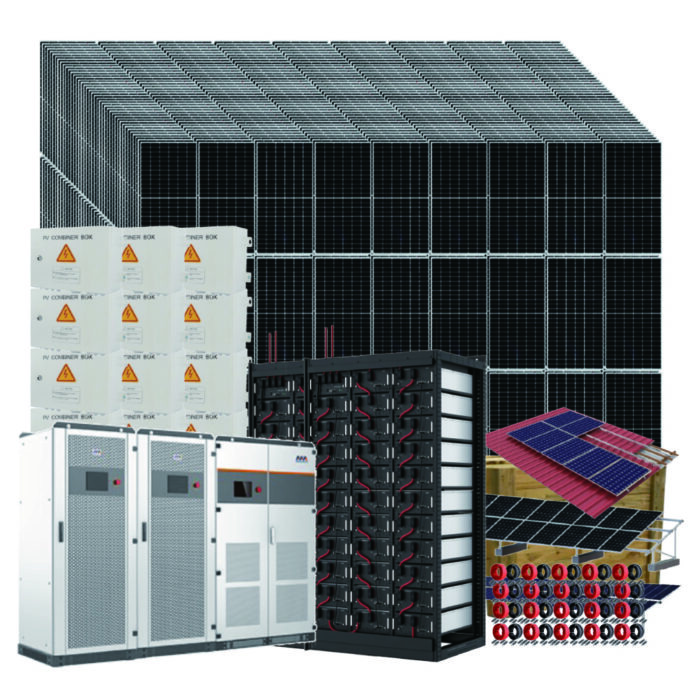

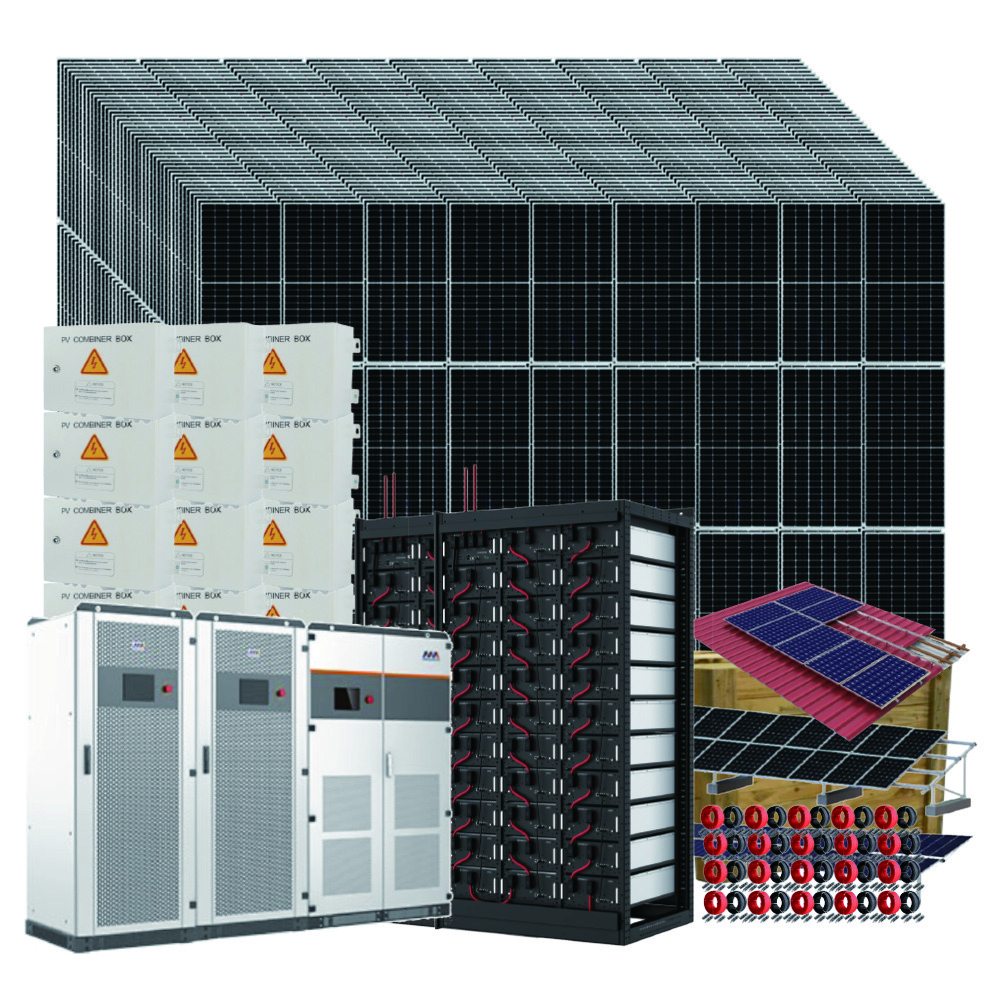

500kW Hybrid Solar System with Batteries (2MWh)
| Picture | Description | Qty |
|---|---|---|
 |
Solar Panel – 660W Size: 2384*1034*35mm, weight: 34kg 12 years material warranty 25 years linear power warranty |
1080 |
 |

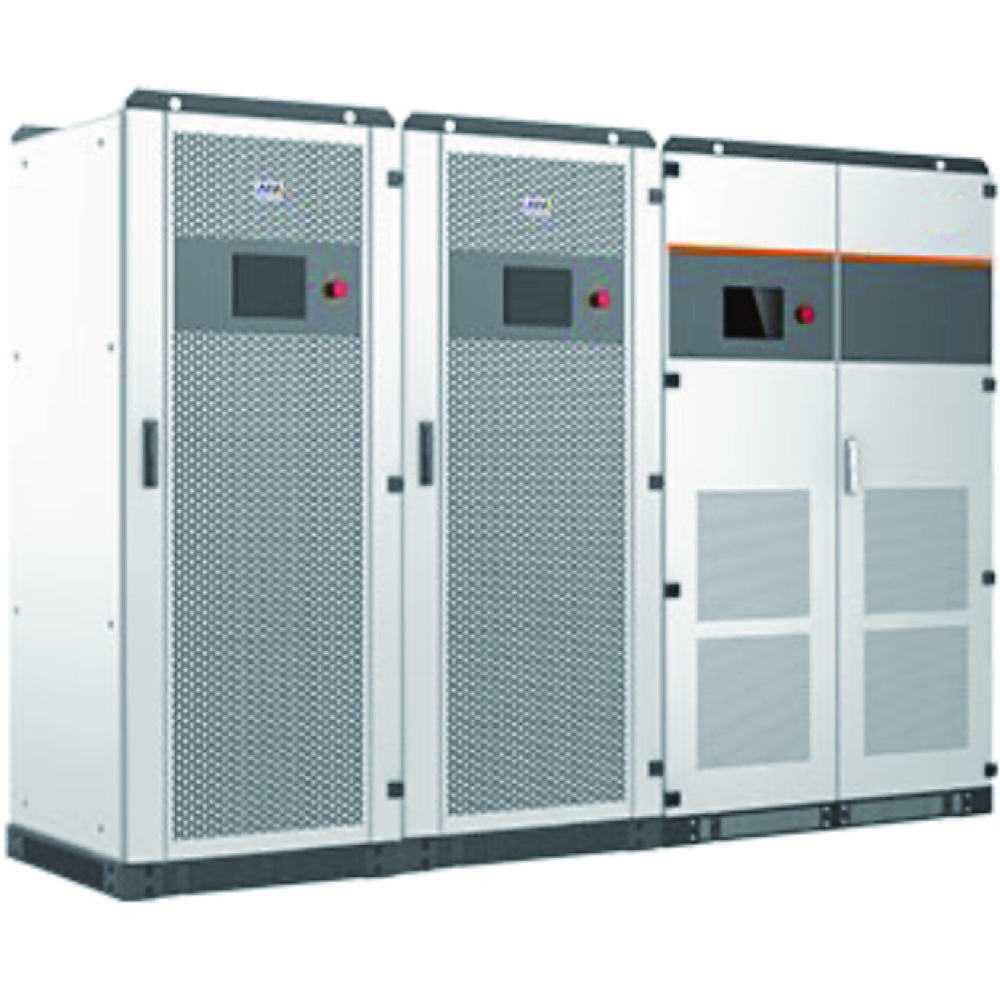

MPS500 Hybrid Inverter – 500kW 400V, 50/60Hz, 3W+N+PE, Three phase Max PV Input Power: 720kW MPPT Voltage Range: 250-850V Battery voltage range: 500-850V Size: (600*720*2050)*2+1600*1050*2050mm, 3325kg, IP20 |
1 |
 |
Lithium Battery With Danger boxes, communication lines, BMS 640V 3000Ah, A-Grade cells Cycle life: 5000-6000 times at DOD 80% Size: 1650*695*2260mm*10 7-layer battery rack*30 Weight: 2142kg Warranty: 6 years |
1 |
 |
PV Combiner Box 5 input, 1 output |
12 |
 |
Bracket Rooftop/Ground Mounting system Enough bracket for 1080pcs panels |
1 |
 |
Cable & Connector 7000m, 4mm² 600m, 10mm2 MC4 plug * 540pcs |
1 |
Total System Cost
- FOB China Price: US$319,999.00～US$339,999.00
Contact Us
Contact us today to receive a custom quote and start your journey toward energy independence!
Contact us
Our YouTube channel
Related products
Frequently Asked Questions (FAQ)
1. How much solar power do I need?
Most homes need 5–12kW, depending on your energy use and location.
2. Off-grid vs. grid-tied — what's the difference?
Off-grid works without the utility grid; grid-tied lets you sell extra power back.
3. Do I need permits?
Usually yes — check local rules or ask us for guidance.
4. How long does a battery last?
Depends on size and load. A 5kWh battery can power a fridge for about 40 hours.
5. Can I upgrade my system later?
Yes, our systems are modular and easy to expand.
6. Does Maxbo offer installation?
We ship globally and connect customers with trusted local installers.
