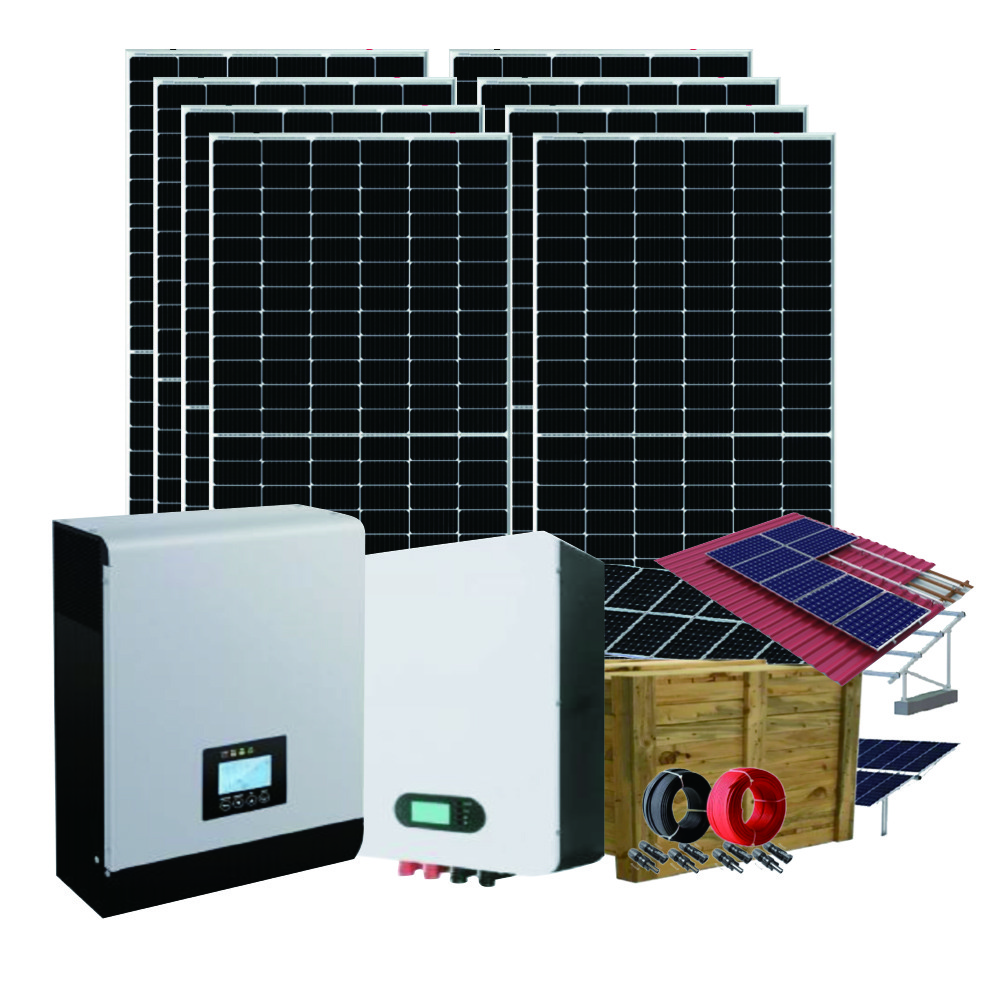

Power output

15.48kWh

Drivable loads

within 16kW

Stored energy

20kWh

Install area

Approx. 75 m²

Picture	Description	Qty

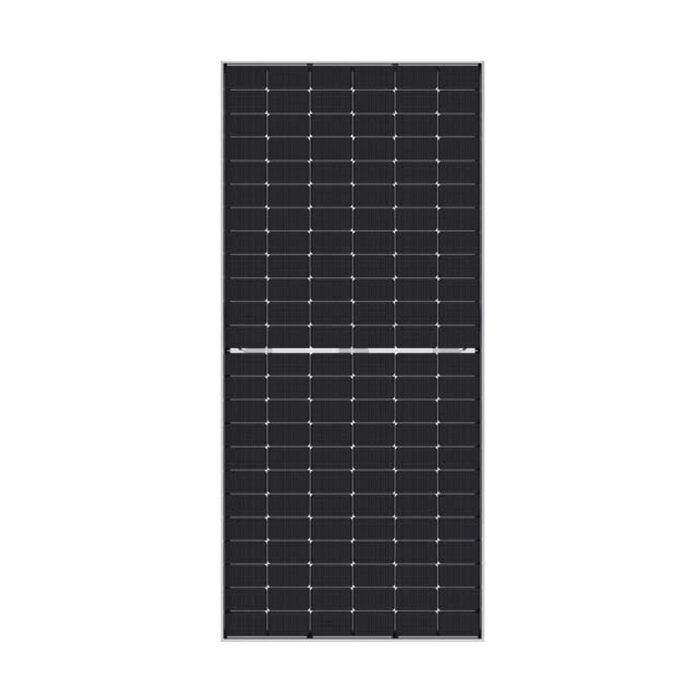

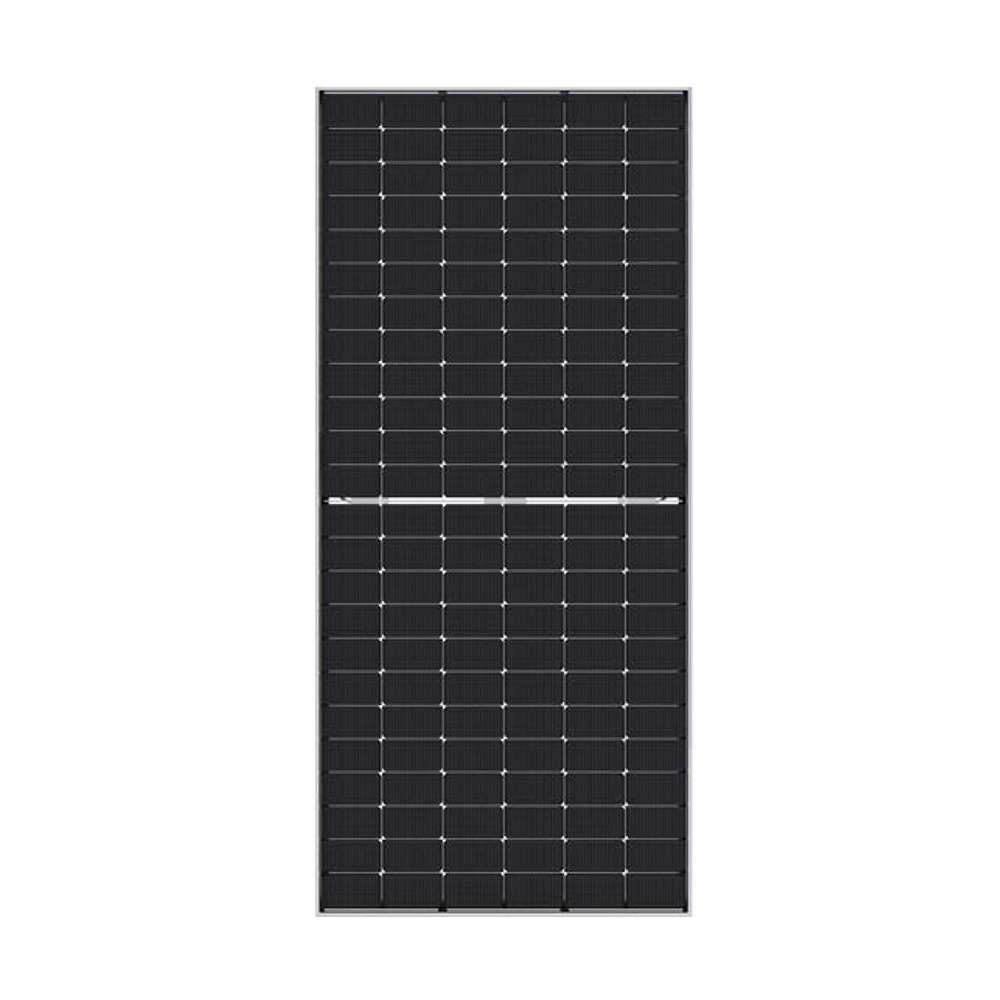

	Full Black Solar Panel – 430W Power: 430W Open circuit voltage: 39.43V Size: 1722x1134x30mm, 20.8kg Module efficiency: 22% 15 years product warranty 25 years linear power warranty	36

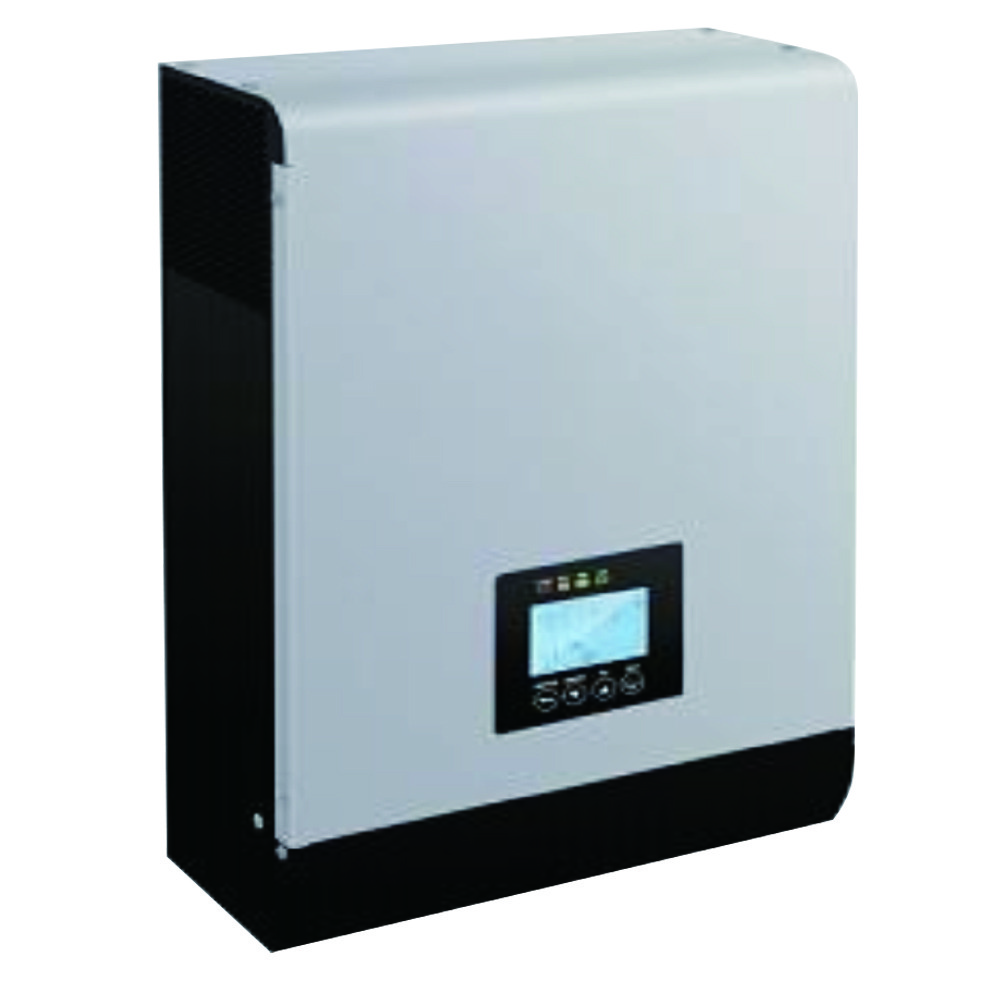

	SPF 5000 ES Inverter – 5kW Rated Power: 5kW Parallel Capability: 6 units maximum Output Voltage: 230VAC±5% Single phase, 50/60Hz Battery voltage: 48V MPPT Voltage Range: 120-430VDC No. of MPPT Trackers: 1/1 Size: 330485135mm, 12kg	3

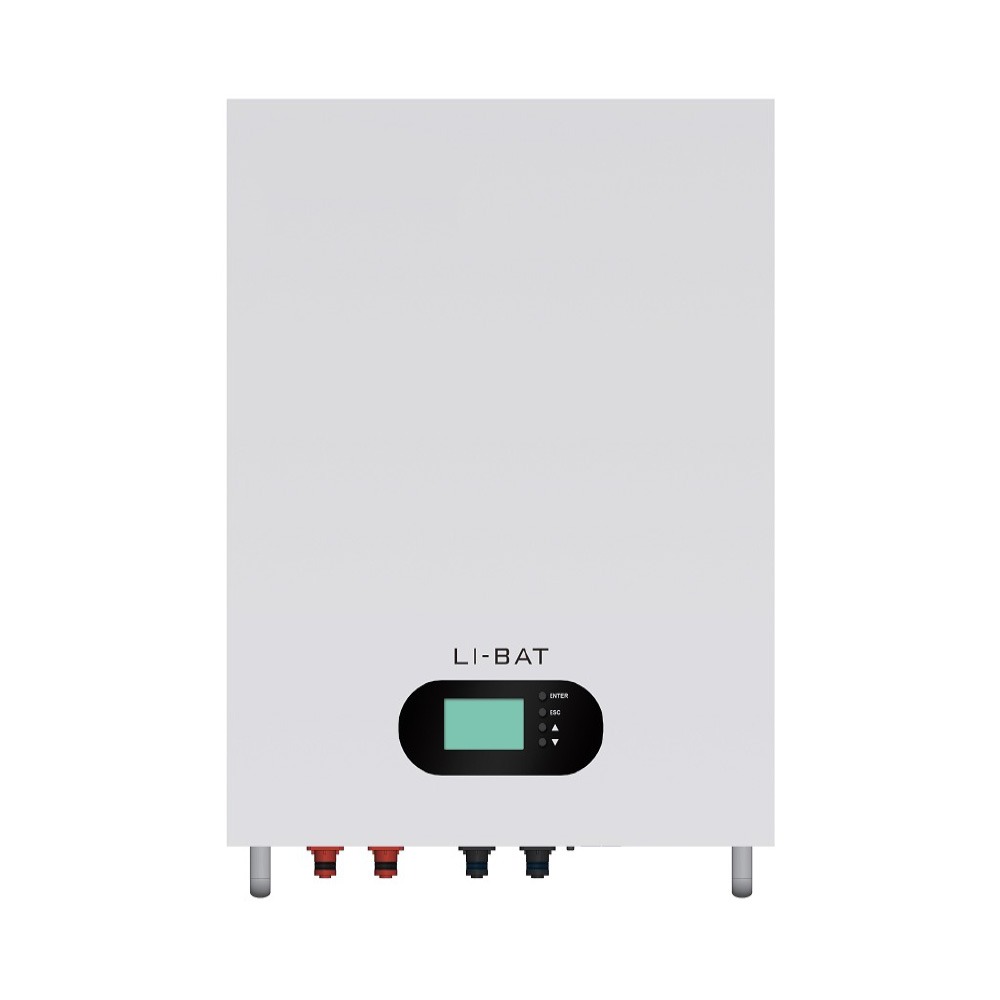

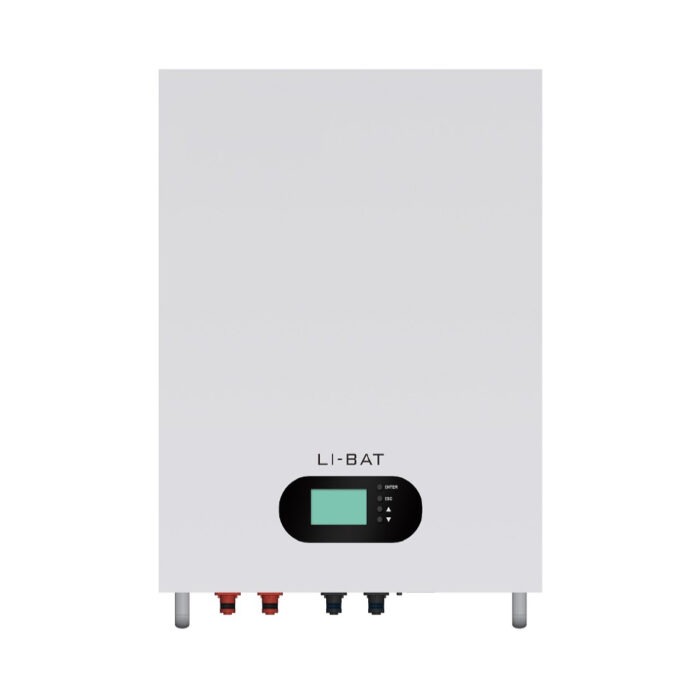

	Li Battery 48V 210AH, A Grade cells, 10.08kWh Cycle life: 5000-6000 times at DOD 80% Size: 465682246mm Weight: 88kg Warranty: 6 years	2
	Combiner Box 3 input, 1 output (switches, breaker, fuse) 15 years warranty	3

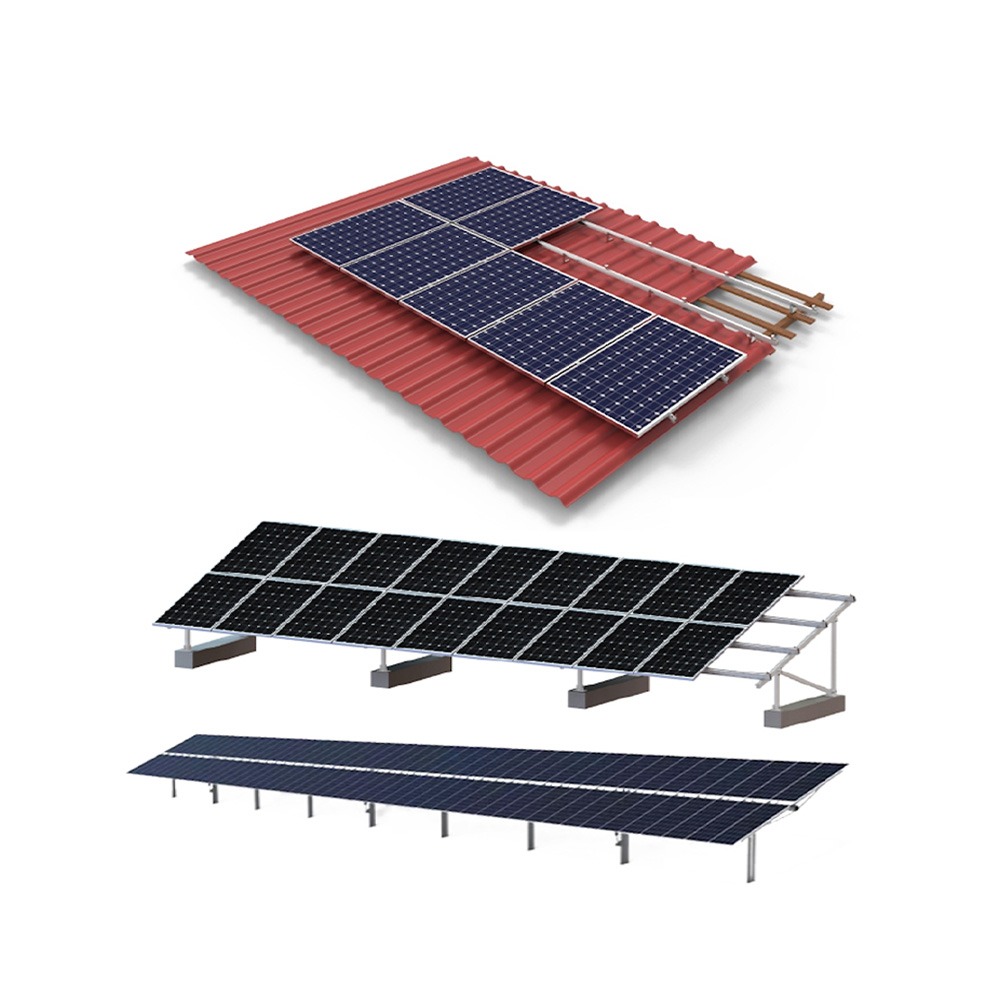

	Aluminum Alloy Bracket Rooftop Mounting system Enough bracket for 36pcs panels (free design dispaly) warranty: 20 years	1

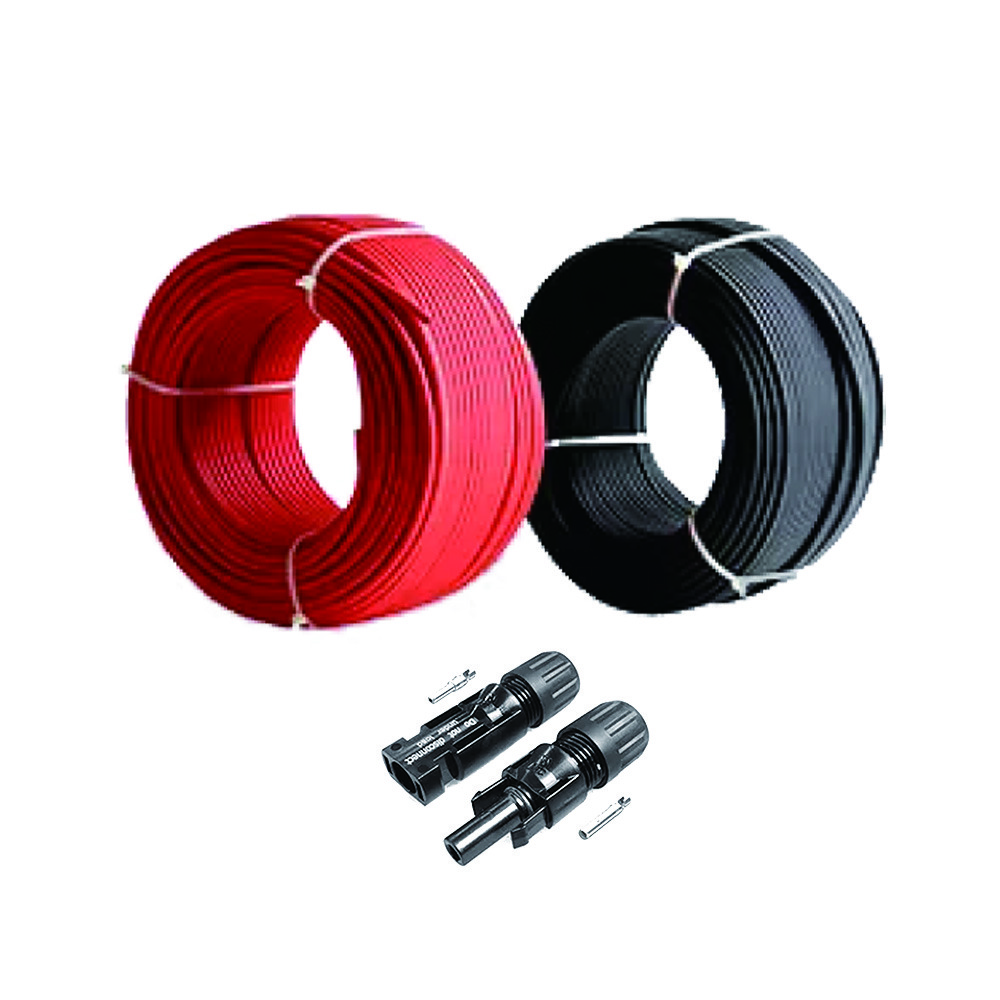

	Cable & Connecter Cables: 300m, 4mm² Certificate:TUV,CE,IEC MC4 plug Rated current: 30A Rated voltage: 1000VDC	1
