15kW hybrid system
Fully Customizable to Fit Your Requirements！
| Power output | 54kWh |
|---|---|
| Drivable loads | within 12kW |
| Stored energy | 15kWh |
| Install area | Approx. 71 m² |

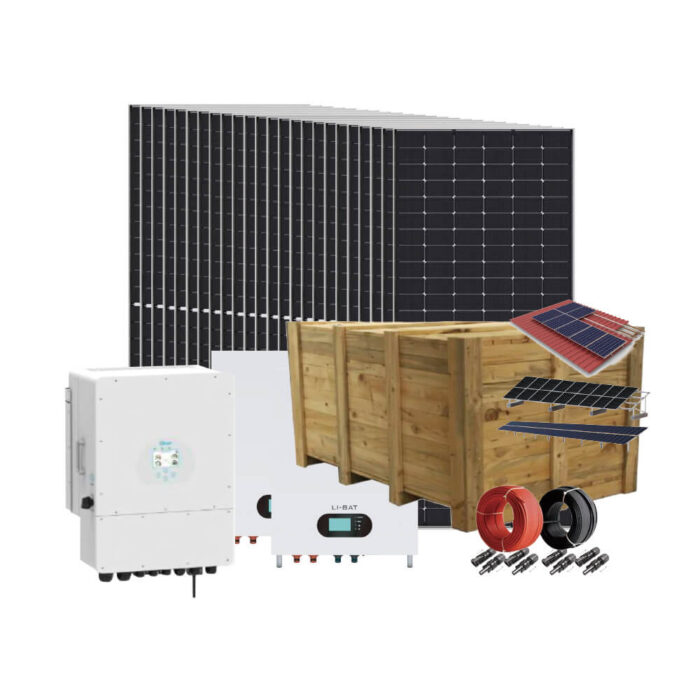

15kW Hybrid System (15kWh)
Description
15kW Hybrid System (15kWh)
Exciting news! Our 10kW Hybrid Solar System blends solar and traditional electricity, ensuring a sustainable, cost-effective energy solution for your home. With solar panels, an advanced inverter, and battery storage, this system optimizes energy use day and night.Benefits include substantial cost savings, reduced grid dependence, and a smaller carbon footprint.
| Picture | Description | Qty |
|---|---|---|
 |
Solar Panel – 625W Rated Power: 625w Open circut voltage: 55.70V Size: 2465×1134×35mm Weight: 30.6kg 12 year material warranty 30 years linear power warranty |
24 |
 |
SUN-12K-SG04LP3-EU Hybrid Inverter – 12kW Output Power: 12kW Max DC Input Power: 15.6kW Battery voltage: 40-60V MPPT Voltage Range (V)：200-650V Grid Type：Three phase Number of MPPT / Strings per MPPT：2/2+1 Size：422×702×281mm Weight: 33.6kg 5 years warranty |
1 |
 |
Lifepo4 Battery – 5kWh 48V 100AH Cycle life: over 5000-6000 times Size: 410×630×156mm Net weight: 51KG 6 years warranty |
1 |
 |
Bracket Rooftop/Ground Mounting system Enough bracket for 24pcs panels (free design display) |
1 |
 |
Cable & Connector Cables: 300m, 4mm² MC4 plug * 20pcs Certificate:TUV,CE,IEC |
1 |
 |
Panels Wooden Package Custom made |
1 |
| Electricity generation | 54kWh / day 1620kWh / month |
* We consider a yield of 0.9 panels in 4 hours 24 pcs X 625W/pcs X 0.9 X 4 hours = 54kWh 54kWh X 30days = 1629kWh/month |
|---|---|---|
| Drivable loads | within 12kW (resistive load) within 4kW (inductive load) |
Inverter with a power of 12 kW Inductive loads require more power to start (triple) |
| Storable power | 15kWh Lithium Battery / 15kWh Gel Battery |
Used for night time electricity. Can be filled in 0.36 day without using other loads |
| Installation area | 71 square meters | Approximately equal to the total area of the PV panels |
Examples of available loads for 15kW hybrid system
| Residential Appliances & Air Conditioning and Heating | Powering essential home appliances such as refrigerators, washing machines, and lighting. Running HVAC systems for climate control within the home or commercial space. |
|---|---|
| Electronics and Entertainment & Lighting Systems | Powering televisions, computers, and other electronic devices. Illuminating both indoor and outdoor spaces, including security lighting. |
| Water Pumping Systems | Supporting water pumps for domestic use or agricultural irrigation. |
| Small to Medium-sized Businesses & Commercial Equipment | Providing power for lighting, computers, and machinery in commercial establishments. Running various types of machinery and equipment in a small to medium-sized business setting. |
