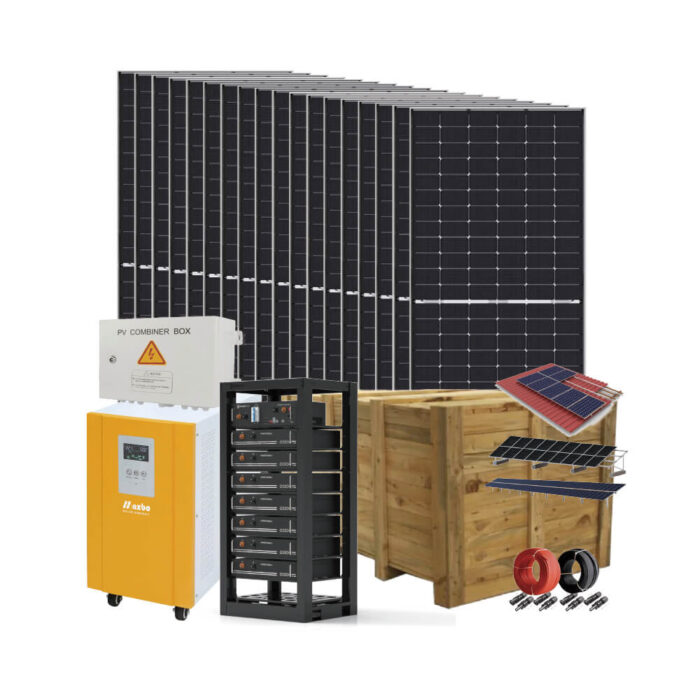

10kW Off Grid System (10kWh)

Achieve energy freedom with our 10kW off grid system, complemented by a 10kWh lithium battery. Experience the ease of living off the grid, where renewable energy meets reliability. Whether it’s a secluded holiday, sustainable living or backup peace of mind, our systems provide reliable energy so you can live life on your terms. Choose simplicity, choose sustainability – choose a 10kW off-grid system with lithium batteries for a brighter, independent future.

Picture	Description	Qty
	Solar Panel – 555W Size: 2278x1134x35mm Open-circuit Voltage (Voc): 49.72V Weight: 28kg 12 years product warraty 25 years linear power warranty	18

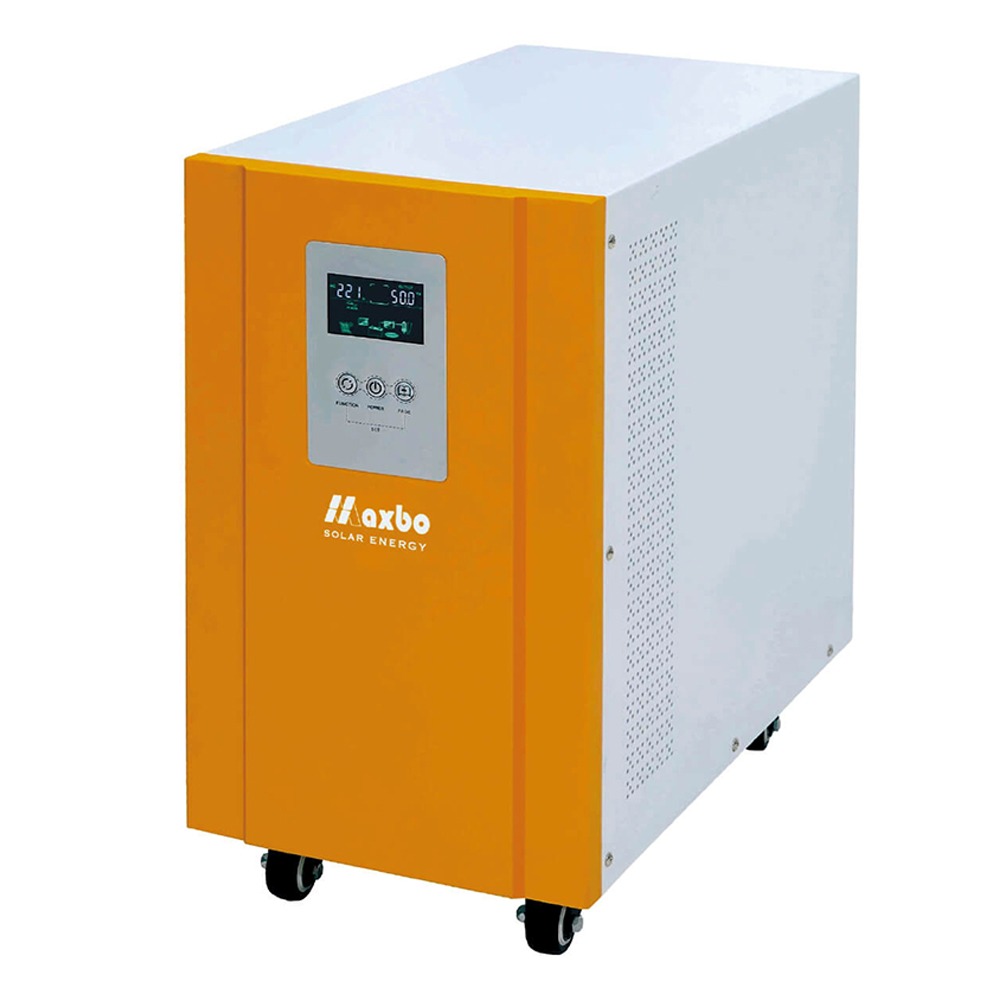

	Inverter – 10kW Output Power: 10kW Max PV power: 11.2kW Battery voltage: 96V Output voltage: 120/240VAC MPPT Range (V): 120V-240V 120/240V, split phase, 60Hz Number of MPPT / Strings per MPPT: 2/1 size: 725×365×1010mm Weight: 122kg 3 years warranty	1
	LiFePO4 Battery – 10kWh 96V 100AH Cycle life: 5000-6000 times at DOD 80% Size: 530×680×670mm Weight: 204KG 5 years warranty	1
	PV Combiner Box 6 Input 2 output (including breaker, fuse, anti-surge protection)	1
	Bracket Rooftop/Ground Mounting system Enough bracket for 18pcs panels Warranty: 20years (free design display)	1
	Cable & Connector 2roll (100m/roll, 4mm²) 100m red&100m black MC4 plug * 10pcs	1
	Panels Wooden Package Custom made	1

Electricity generation	37kWh / day 1110kWh / month	* We consider a yield of 0.93 panels in 4 hours 18 pcs X 555W/pcs X 0.93 X 4 hours = 37kWh 37kWh X 30days = 1110kWh/month
Drivable loads	within 15.4kW (resistive load) within 5.15kW (inductive load)	The power frequency inverter can start a 7HP motor, 7HP=7X0.735W=5.145kW, and can drive a resistive load with a power of 5.145X3=15.435kW
Storable power	10kWh Lithium Battery / 10kWh Gel Battery	Used for night time electricity. Can be filled in half a day without using other loads
Installation area	49 square meters	Approximately equal to the total area of the PV panels

Application Scenarios for 10kW Off Grid System

Remote Residential Dwellings	The 10kW off-grid PV system is ideal for providing power to remote homes or cabins not connected to the main electricity grid. It ensures a sustainable and self-sufficient energy source, allowing residents in remote areas to enjoy electricity for lighting, appliances, and other essential needs.
Telecommunications Towers	Off-grid PV systems are commonly used to power telecommunication towers located in remote or off-grid locations. These systems help ensure constant and reliable communication by providing a continuous power supply to essential equipment, including transmitters and receivers.
Agricultural Operations	Farms and agricultural facilities can benefit from off-grid solar systems to power irrigation pumps, machinery, and other electrical equipment. This application not only reduces energy costs but also promotes sustainable and environmentally friendly farming practices.
Emergency Preparedness and Disaster Relief	Off-grid PV systems play a critical role in emergency preparedness and disaster relief efforts. These systems can be deployed to provide immediate power to essential services, emergency shelters, and medical facilities in areas affected by natural disasters or emergencies, ensuring a swift response and aid delivery.
