Power output

50kWh

Drivable loads

within 11kW

Stored energy

20kWh

Install area

Approx. 49 m²

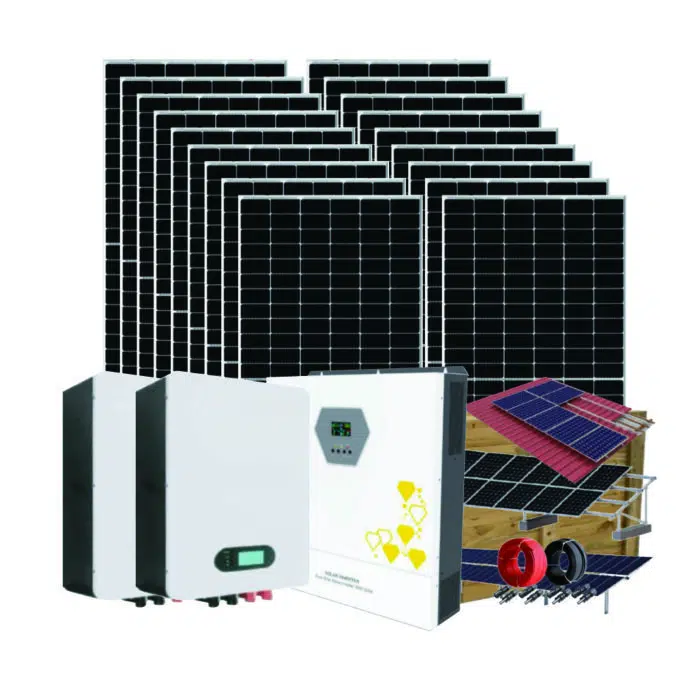

Picture	Description	Qty
	Solar Panel – 550W Size: 2278x1134x35mm, 28kg 12 years product warranty 25 years linear power warranty	18

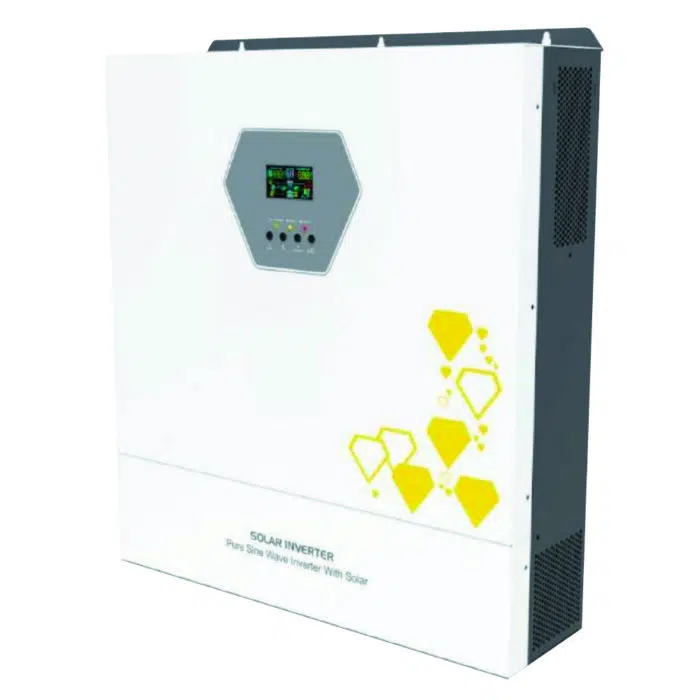

	Inverter – 11kW Battery voltage: 48V Rated Output Power: 11kW Rated Output Voltage: 220/230/240VAC MPPT Tracking Voltage: 90-500V MAX PV Input Voltage: 500V Size: 500571148mm Certificate: CE	1
	Lithium Battery 48V 200AH, A Grade cells Cycle life: 5000-6000 times at DOD 80% Size: 465682246mm Weight: 88kg Warranty: 6 years	2
	Aluminum Alloy Bracket Rooftop/ Ground Mounting system Enough bracket for 18 pcs panels (free design display)	1
	Cable & Connector 2roll (100m/roll, 4mm2) 100m red & 100m black MC4 plug Rated current: 30A Rated voltage: 1000VDC	1
	Panels Wooden Package Custom made	1
