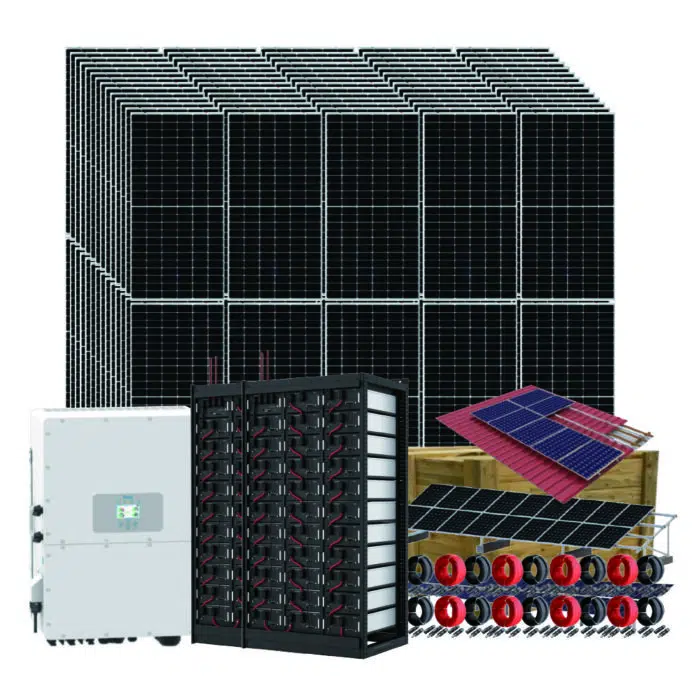

100kW Hybrid Solar System (100kWh)

100kW Hybrid Solar System

FOB China Price: US$41,999.00~US$43,999.00
Fully Customizable to Fit Your Requirements!

Power output 447kWh
Drivable loads within 100kW
Stored energy 100kWh
Install area Approx. 457 m²

Description

100kW Hybrid Solar System (100kWh)

Picture Description  Qty
550W solar panel Solar Panel – 710W
Power: 710W Open-circuit
Voltage: 49.62V Size:2384*1303*30mm.32kg
12 year material warranty
25 years linear power warranty
140

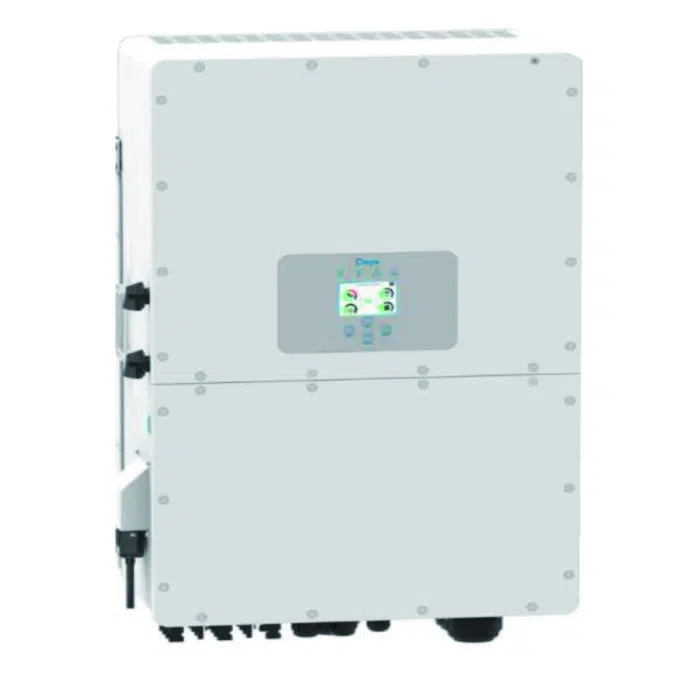

SUN-50K-SG01HP3-EU-BM4 – 50kW
Output Power: 50kW
Rated Voltage: 600V
Output Voltage: 220/380VAC, 3L/N/PE,50/60Hz
Battery voltage: 150-800V
MPPT Voltage Range: 200-850V
No. of MPPT Trackers: 4/2
Waveform: Pure Sine wave,
560.5*837*319mm, 80kg
Battery type: Lithium-ion
MPPT control function, warranty: 5 years
2
Lithium Battery
480V 210Ah 100.8kWh
Size:1100*695*1979mm
Cycle life: 5000-6000 times
6 years warranty
Weight: 1224kg
2
Bracket
Grounding/Rooftop Mounting system
Enough bracket for 140pcs panels
Warranty:1 years
1
Cable & Connecter
10roll (100m/roll, 4mm2)
MC4 plug * 70pcs
1
Panels Wooden Package
Custom made
1

Total System Cost

  • FOB China Price: US$41,999.00~US$43,999.00




Contact Us

Contact us today to receive a custom quote and start your journey toward energy independence!

Contact us
Our YouTube channel



* Please fill in as fully as possible so that we can provide a more accurate proposal.

Frequently Asked Questions (FAQ)

1. How much solar power do I need?
Most homes need 5–12kW, depending on your energy use and location.
2. Off-grid vs. grid-tied — what's the difference?
Off-grid works without the utility grid; grid-tied lets you sell extra power back.
3. Do I need permits?
Usually yes — check local rules or ask us for guidance.
4. How long does a battery last?
Depends on size and load. A 5kWh battery can power a fridge for about 40 hours.
5. Can I upgrade my system later?
Yes, our systems are modular and easy to expand.
6. Does Maxbo offer installation?
We ship globally and connect customers with trusted local installers.
