Description

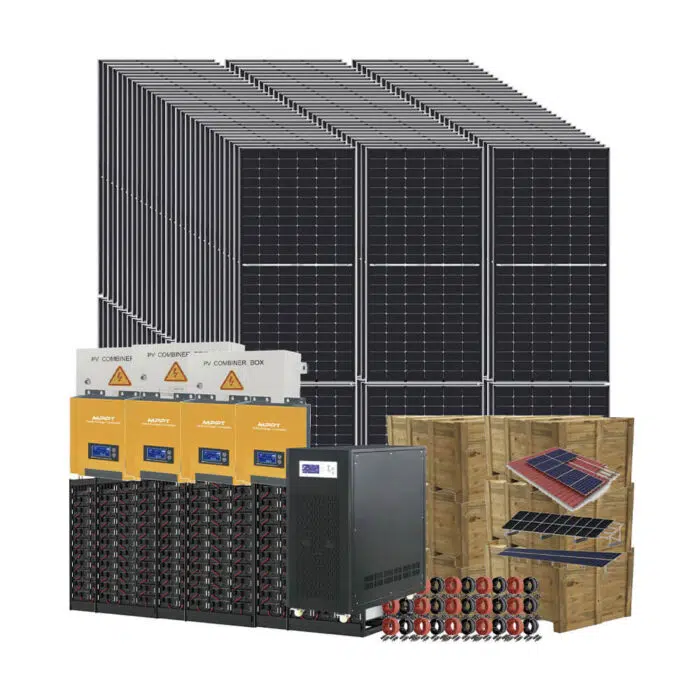

100kVA Off Grid Solar System (300kWh)

With an impressive daily output of 372.6kWh, this system meets the energy demands of large-scale industrial operations, agricultural activities, and remote communities. The high-voltage 300kWh Lithium Battery enhances energy storage capabilities for round-the-clock reliability.

With an efficient design covering 490 square meters, this off-grid powerhouse promises sustainability, resilience, and energy independence. Empower your endeavors with our 100kW Off-Grid System – leading the way to a greener and more self-sufficient future.

Picture	Description	Qty
	Solar Panel – 575W Size:2278×1134×30mm Open-circuit Voltage (Voc)：51.27V Weight:32kg 12 years product warranty 25 years linear power warranty	180

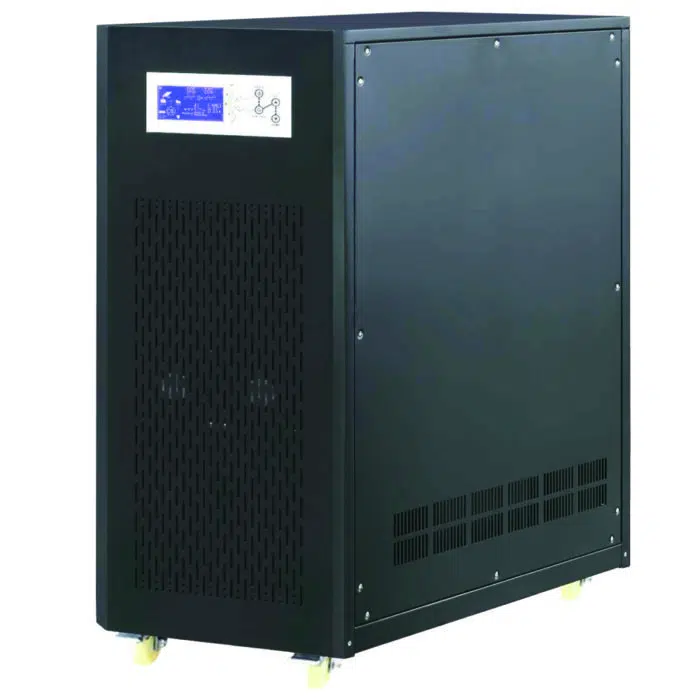

	Inverter -100kVA/80kW Output Power: 80kW Peak Power: 100kVA 220V+-10% ;50/60Hz; 3 phase Battery voltage: 384VDC Waveform: Sine wave Start motor: 40HP Certificate: CE Warranty: 3 years	1
	Lithium Battery With Danger boxes, communication lines,BMS 384V 200Ah Capacity:76800WH Cycle life: 5000-6000 times Size:10606801510mm 5-layer battery rack*2 Weight: 1020kg Warranty: 6 years	3

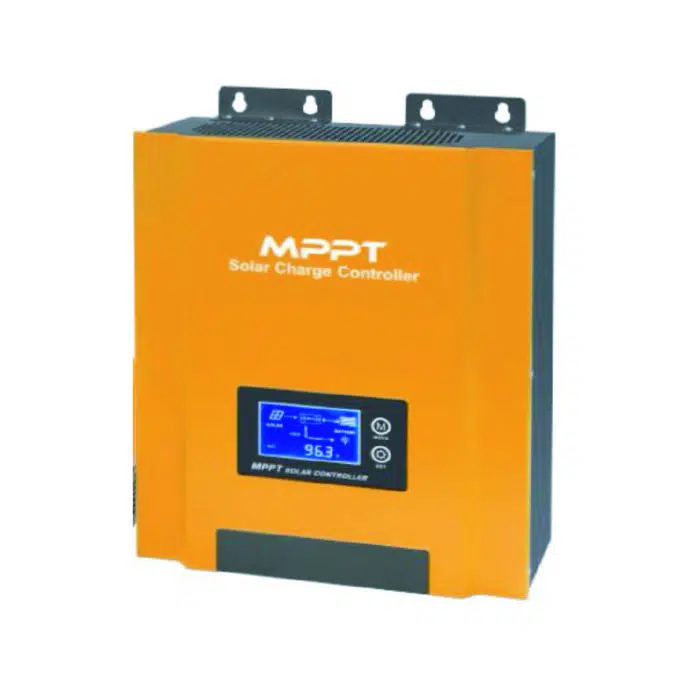

	MPPT Controller 384V,100A Max Pv input voltage:800V Working voltage range:400-640v PV Max Power:44800W No of tracker:2 Warranty:3 years	4
	Combiner Box 6 input, 2output	3
	Aluminum alloy Bracket Rooftop/Ground Mounting system Enough bracket for 180pcs panels Warranty :20years (free design display)	1
	Cable & Connecter 12roll (100m/roll, 4mm²) 600m red&600m black MC4 plug * 90pcs	1
	Panels Wooden Package Custom made	6

Electricity generation	372.6kWh / day 11178kWh / month	* We consider a yield of 0.9 panels in 4 hours 180 pcs X 575W/pcs X 0.9 X 4 hours = 372.6kWh 372.6kWh X 30days =11178kWh/month
Drivable loads	within 88.2kW (resistive load) within 29.4kW (inductive load)	The power frequency inverter can start a 40HP motor, 40HP=40X0.735W=29.4kW, and can drive a resistive load with a power of 29.4X3=88.2kW
Storable power	300kWh Lithium Battery （high voltage）	Used for night time electricity. Can be filled in one day without using other loads
Installation area	490 square meters	Approximately equal to the total area of the PV panels

Application Scenarios for 100kVA Off Grid Solar System

Remote Industrial Operations	Powering machinery and equipment in remote or off-grid industrial facilities, such as mining operations.
Rural Electrification Projects & Large Agricultural Operation	Bringing electricity to remote villages or areas without access to the main power grid. Supporting the energy needs of extensive farms, including irrigation systems, machinery, and storage facilities.
Commercial and Industrial Complexes	Powering large commercial or industrial complexes with substantial energy requirements for lighting, machinery, and other operations.
Large-Scale Water Pumping	Supporting water pumping systems for agricultural irrigation or community water supply.
